HXS-2
Anion Exchange Membrane Water Electrolysis Stack
By not using Ir and Ti, it is possible to produce high-purity hydrogen at a lower cost.
Reusability of hardware except MEA in case of stack issues.
Technology Introduction
Performance
Achieving superior performance through advanced electrode design

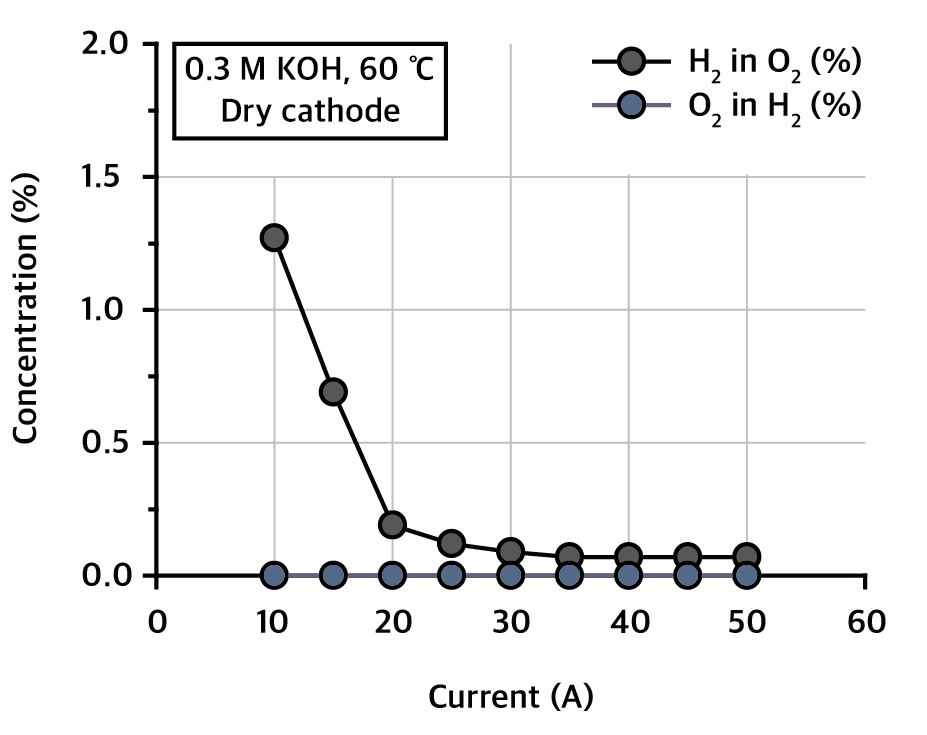

Hydrogen Purity
Produce high-purity hydrogen with less than 2% over a 20 ~ 100% laod
Specification
- Hydrogen production rate : 500 L/hour
- Operating range : 10 ~ 50 A
- Power consumption : ~ 4.1 kWh/Nm3, beginning of life
- Electrolyte : 0.3 M KOH, 55 °C
- Water consumption : ~ 420 mL/h at 25 °C
- Dimensions : 190 mm x 200 mm x 215 mm
- Weight : 19 kg
